THS17 – 17.6k Split Deck Hydraulic Tilt Trailer

Trailers > Tilt Trailers > Tube Frame Hydraulic Tilt Trailer > THS17 – 17.6k Split Deck Hydraulic Tilt Trailer

GVWR
Length
Width
Payload Capacity
Deck Load Angle

17,600 lbs.
20', 22'
82"
13,550 - 13,750 lbs.
10° - 12°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
20'
3,850 lbs
22'
4,050 lbs

Deck Width 82"

Deck Height 22"

Frame 6" Tube Frame

Crossmember 3" Channel

Flooring DURA Color Pressure Treated

Fenders Treadplate Steel

Axles 2 - 8,000 lb. 4" Drop Premium Axles

Suspension 7-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires LT215/75R17.5 16 ply Radial

Wheel 17.5" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 10K Hydraulic Hyjacker

Stake Pockets Stake Pockets

Battery GR27 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• Adjustable Pintle Ring

• Aluminum Wheels

• Blackwood Decking

• D Rings

• Electric/Hydraulic Brakes

• Pallet Fork Carrier

• Spare Tire

• Spare Tire Mount

• Stake Pockets w/ Rub Rail

• Winch Mount Plate

• Wireless Remote

A Closer Look

Charge Up with the 110V Charger

Don't get stranded without battery power to operate your trailer's lift! This included 5 Amp, 110V Charger provides you a fast and efficient way to charge your trailer's battery, so you always have the power to get the job done.

A Closer Look

Hydraulic Jacks by BWise

For easy and convenient hook up and unhitch, our internally engineered and manufactured hydraulic jack system gives the added benefit of saving your time and energy to get your trailer prepped for hitching or unhitching to your tow vehicle.

A Closer Look

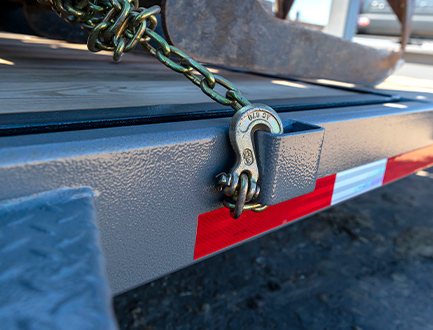

Stake Pockets

Get more capability from your trailer by taking advantage of the included stake pockets plus rub rail for added tie-down points for your cargo. Stake pockets also provide the added benefit of building up a sidewall to help keep cargo contained.
