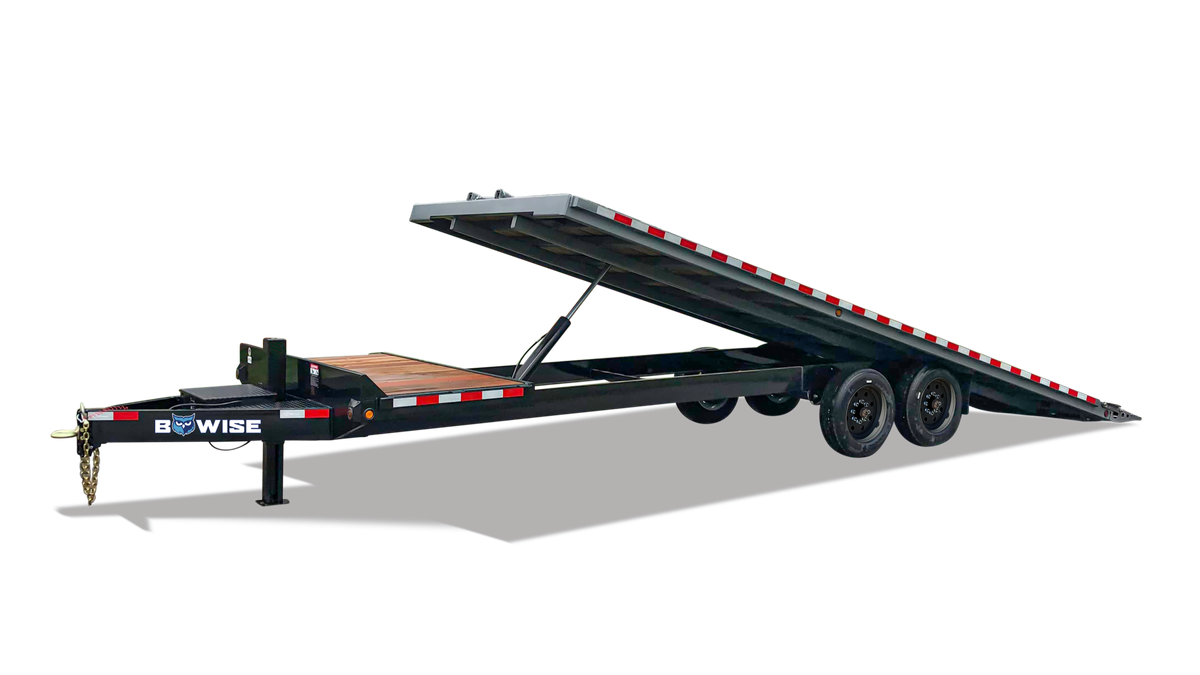

THDS17 – 17.6k Deckover Hydraulic Split Tilt Trailer

Trailers > Tilt Trailers > Channel Frame Deckover Hydraulic Tilt Trailer > THDS17 – 17.6k Deckover Hydraulic Split Tilt Trailer

GVWR
Length
Width
Payload Capacity
Deck Load Angle

17,600 lbs.
26'
102"
12,100 lbs.
18°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
26'
5,500 lbs

Deck Width 102"

Deck Height 35"

Frame 8" Channel Frame

Crossmember 3" Channel

Flooring DURA Color Pressure Treated

Axles 2 - 8,000 lb. Premium Axles

Suspension 7-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires LT215/75R17.5 16 ply Radial

Wheel 17.5" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 10K Hydraulic Hyjacker

Stake Pockets Stake Pockets w/ Rub Rail

Battery GR27 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• Adjustable Pintle Ring

• Aluminum Wheels

• Blackwood Decking

• D Rings

• Electric/Hydraulic Brakes

• Gooseneck

• Spare Tire

• Spare Tire Mount

• Underbody Tool Box (24"

• 36"

• 48")

• Winch Mount Plate

• Wireless Remote

A Closer Look

Charge Up with the 110V Charger

Don't get stranded without battery power to operate your trailer's lift! This included 5 Amp, 110V Charger provides you a fast and efficient way to charge your trailer's battery, so you always have the power to get the job done.

A Closer Look

Hydraulic Jacks by BWise

For easy and convenient hook up and unhitch, our internally engineered and manufactured hydraulic jack system gives the added benefit of saving your time and energy to get your trailer prepped for hitching or unhitching to your tow vehicle.

A Closer Look

Stake Pockets with Rub Rail (EHD Series)

Get more capability from your trailer by taking advantage of the included stake pockets plus rub rail for added tie-down points for your cargo. Stake pockets also provide the added benefit of building up a sidewall to help keep cargo contained. At the same time, the rub rail protects your trailer from forklifts and other equipment while sideloading up your trailer.

A Closer Look

Torsion Axles

Torsion trailer axles can offer a smoother ride and less maintenance in the long term for trailer owners. They are manufactured with a series of long rubber cords inside a square tube with an inner piece that the torsion arms are secured to. With no metal-on-metal contact points, these axles can provide a quiet ride with your trailer.
