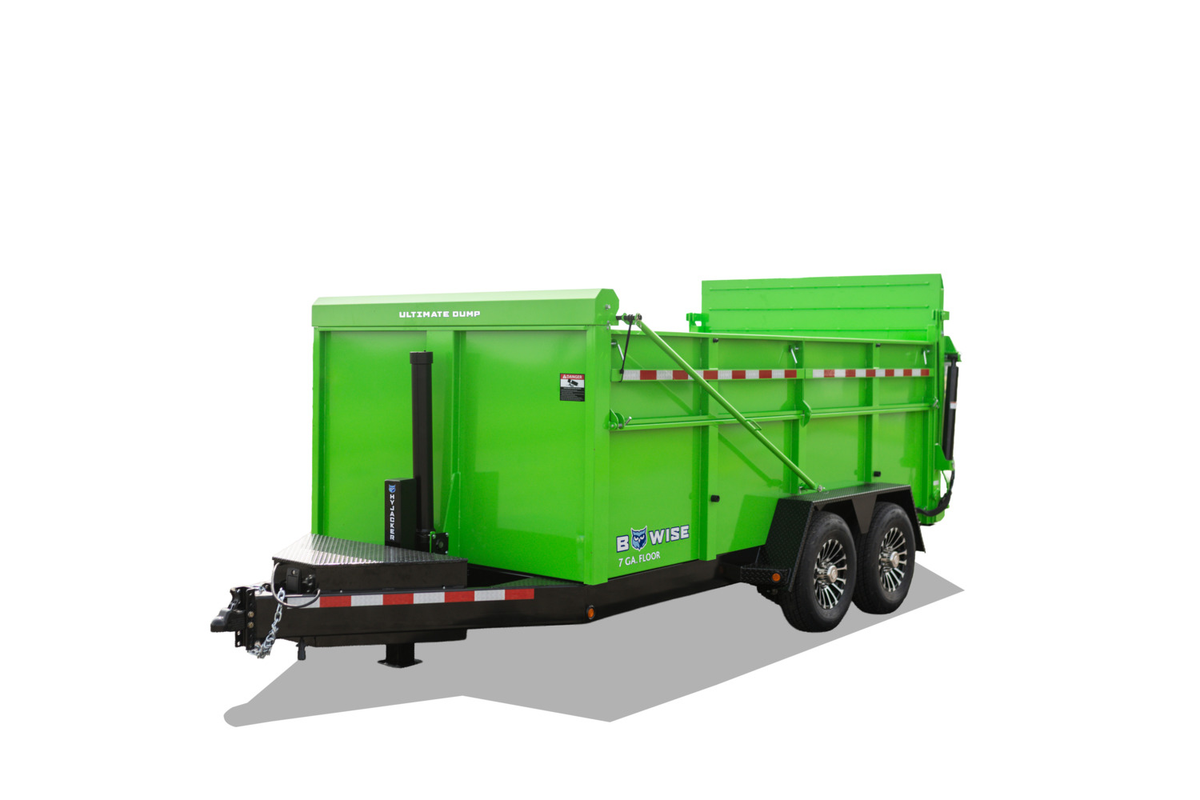

DUT15 – 15k Ultimate Dump Trailer

Trailers > Dump Trailers > Ultimate Dump Trailer > DUT15 – 15k Ultimate Dump Trailer

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

15,400 lbs.
14', 16'
82"
14.2 - 16.2 cu yds
9,600 - 9,890 lbs.
45°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
14'
5,510 lbs
16'
5,800 lbs

Deck Width 82"

Deck Height 26"

Frame 8" Tube Frame

Crossmember 3" Channel

Dump Sides 48" w/ 20" Fold Down - 12 GA

Flooring 7 GA One-Piece Steel

Fenders Treadplate Steel

Dump Gate 6' Hydraulic Ramp/Gate

Ramps 6' Hydraulic Ramp/Gate

Axles 2 - 7,000 lb. 4" Drop Premium Axles

Suspension 5-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires ST235/80R16 10 ply Radial

Wheel 16" Black Aluminum Wheels

Tire Spare Spare Tire & Aluminum Wheel Included

Coupler 2 5/16" Adjustable Coupler

Jack 10K Hydraulic Hyjacker

Rear Support Jacks Rear Stabilizer Legs

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

D-Ring 6 Side Mount Bolt-On

Dump Tarp Spring Loaded Tarp w/ Arms

Battery GR24 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• Adjustable Pintle Ring

• Electric/Hydraulic Brakes

• G ply Tire Upgrade

• Gooseneck

A Closer Look

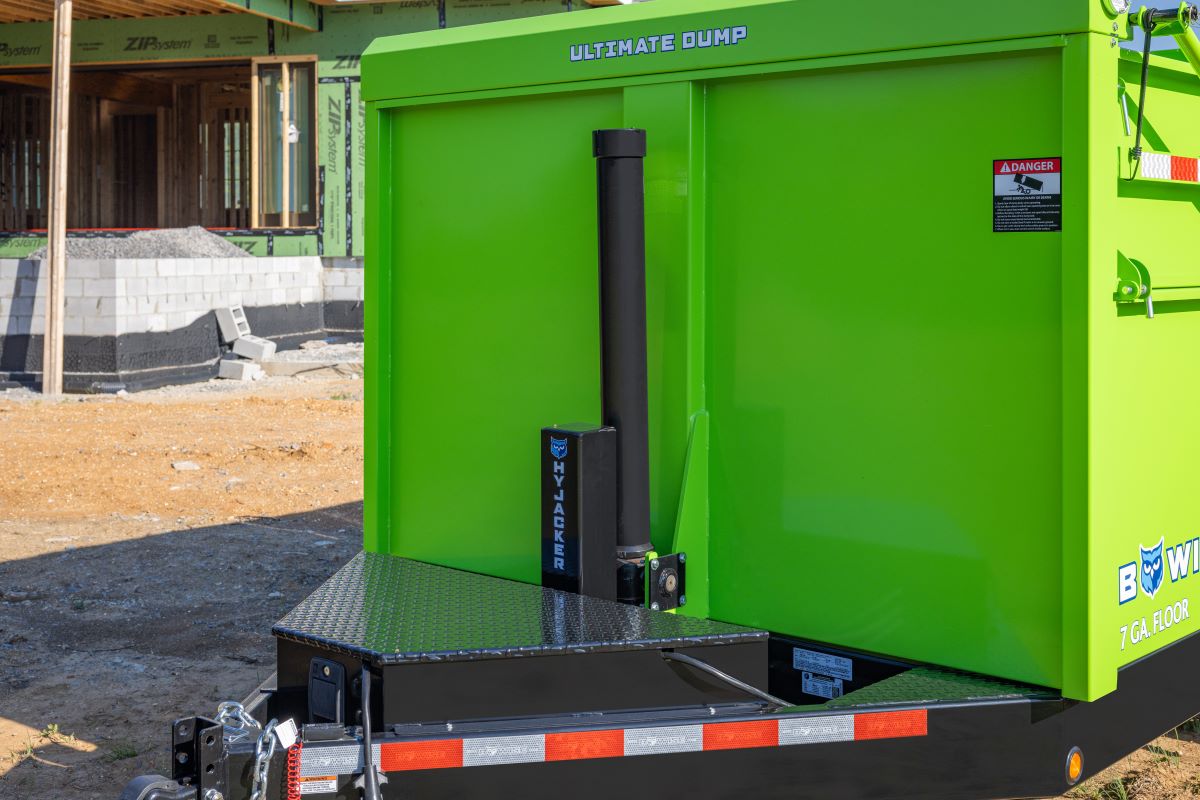

3-Stage Telescopic Cylinder

This new system features a 45-degree lift angle for optimal performance. With the cylinder positioned at the front, it remains unobstructed during operation and easily accessible for maintenance, allowing it to handle heavy loads with ease.

A Closer Look

TUFF Wireless Remote

The TUFF Wireless Remote comes standard with this trailer, giving you effortless control at your fingertips—operate the hydraulic jack and seamlessly switch between spreader and ramp gate functions with ease.

A Closer Look

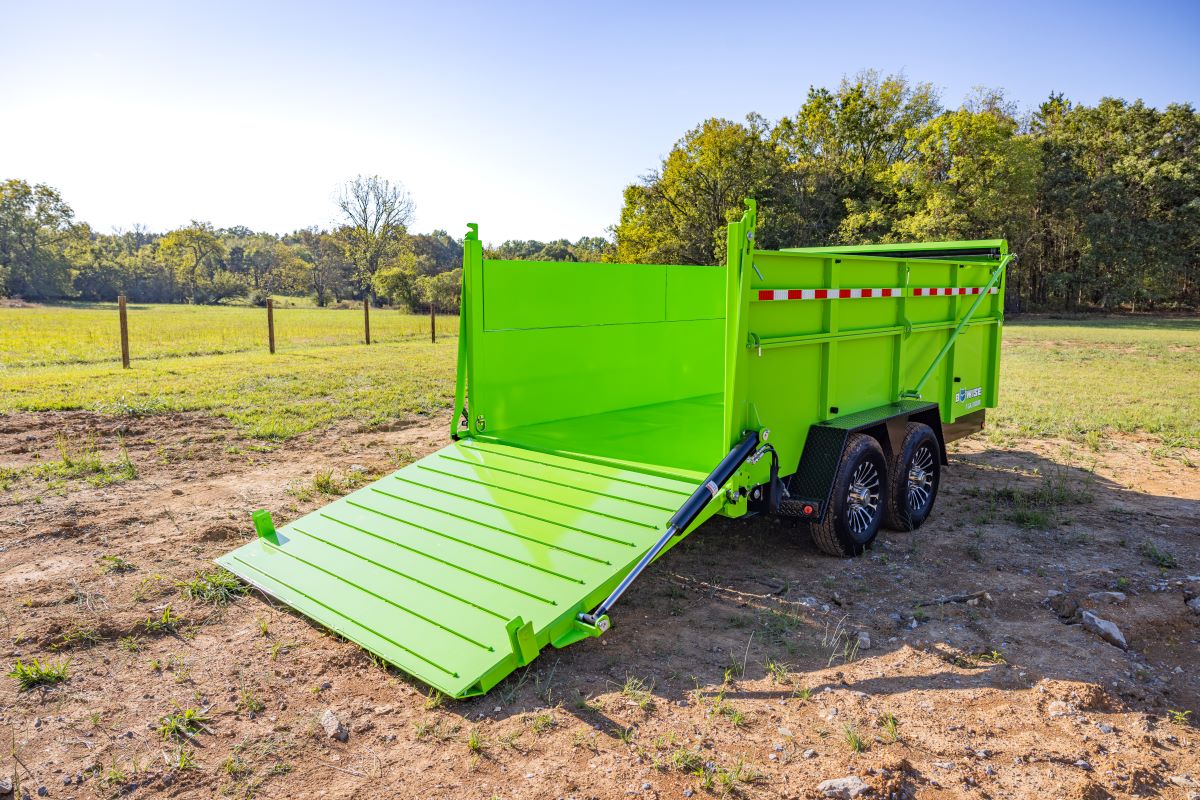

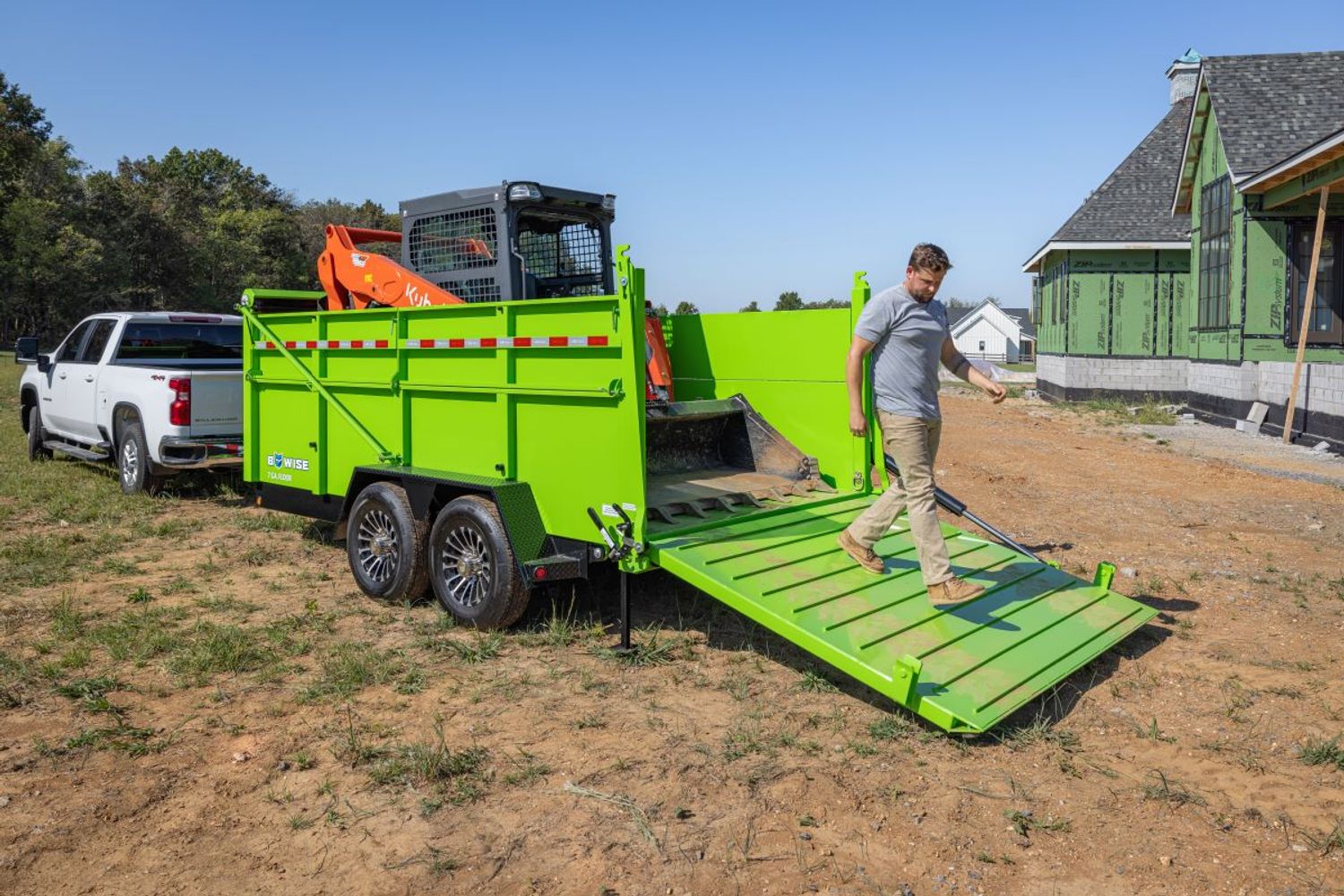

Hydraulic Ramp Gate

The versatile hydraulic ramp gate is built for the job site—lower it to easily load equipment, or lift it up into spreader mode to drop material or lay down aggregate with precision and efficiency.

A Closer Look

REDARC Charger

The REDARC charger keeps your dump trailer’s battery charged simply by plugging into your tow vehicle. As long as your truck is running, it’s working—maintaining battery life without the hassle of overnight charging or extra steps.
