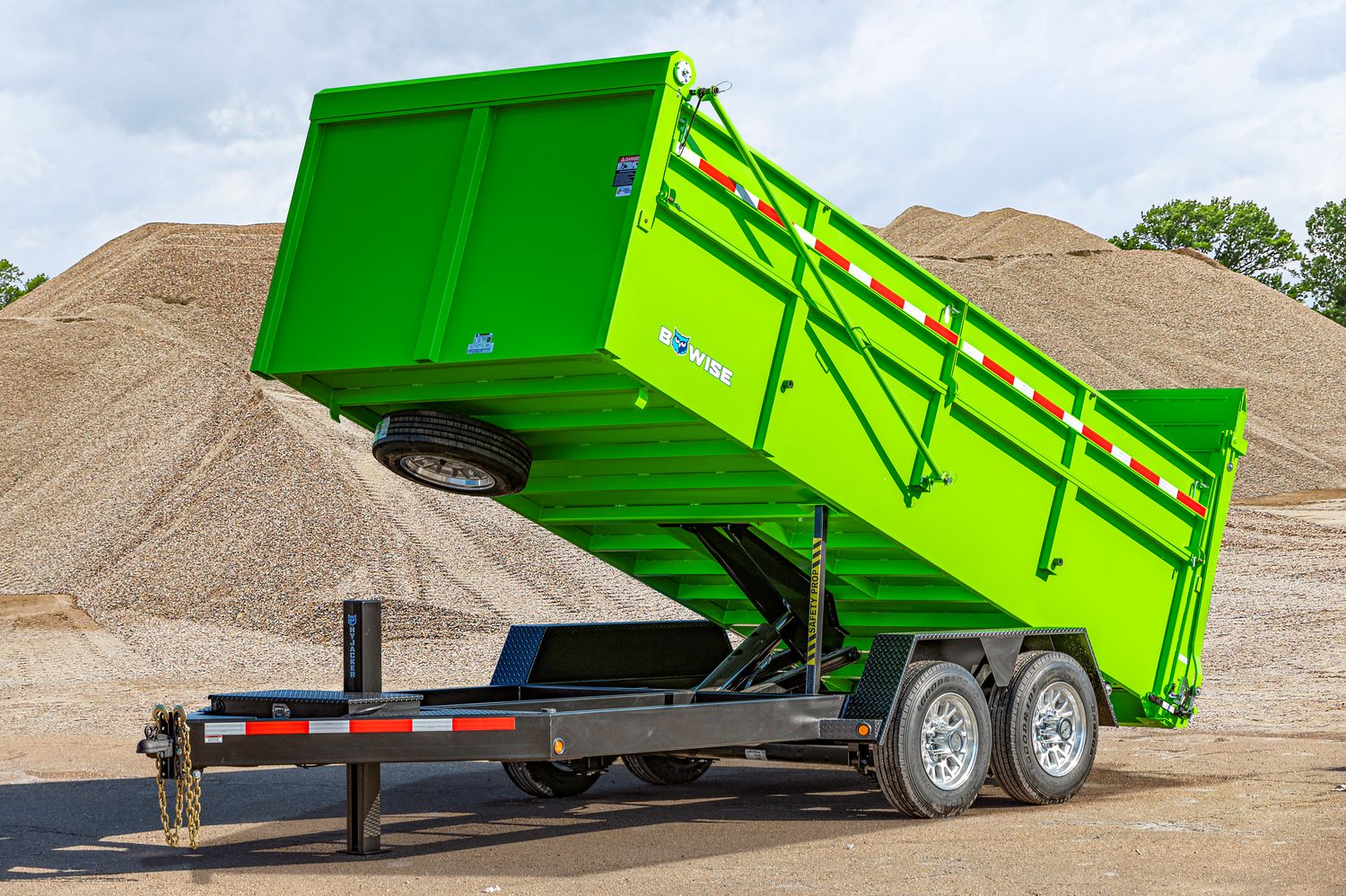

DU17 – 17k Ultimate Dump Trailer

Trailers > Dump Trailers > Ultimate Dump Trailer > DU17 – 17k Ultimate Dump Trailer

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

17,600 lbs.
14', 16'
82"
14.2 - 16.2 cu yds
11,390 - 11,680 lbs.
47°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
14'
5,920 lbs
16'
6,210 lbs

Deck Width 82"

Deck Height 27"

Frame 8" Tube Frame

Crossmember 3" Channel

Dump Sides 48" w/ 20" Fold Down - 12 GA

Flooring 10 GA One-Piece Steel

Fenders Treadplate Steel

Dump Gate 6' Hydraulic Ramp/Gate

Ramps 6' Hydraulic Ramp/Gate

Axles 2 - 8,000 lb. 4" Drop Premium Axles

Suspension 7-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires LT215/75R17.5 16 ply Radial

Wheel 17.5" Black Aluminum Wheels

Tire Spare Spare Tire & Aluminum Wheel Included

Coupler 2 5/16" Adjustable Coupler

Jack 10K Hydraulic Hyjacker

Rear Support Jacks Rear Stabilizer Legs

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

D-Ring 6 Side Mount Bolt-On

Dump Tarp Spring Loaded Tarp w/ Arms

Battery GR27 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• Adjustable Pintle Ring

• Electric/Hydraulic Brakes

• Gooseneck

• 7 GA Floor

A Closer Look

Hydraulic Jacks by BWise

For easy and convenient hook up and unhitch, our internally engineered and manufactured hydraulic jack system gives the added benefit of saving your time and energy to get your trailer prepped for hitching or unhitching to your tow vehicle.

A Closer Look

Hydraulic Ramp/Gate

Take advantage of hands-free loading and unloading with the BWise hydraulic ramp gate. With full hydraulic power, there's no more hassle with traditional slide-in ramps. Or configure the latches to the gate function for dumping dirt and debris. Save your back and let our hydraulic ramp gate do the work.

A Closer Look

Meet the Ultimate Dump

The name says it all...this trailer is the Ultimate Dump Trailer. nTake a deeper look into the BWise Ultimate Dump Trailer. Designed for commercial landscape and construction and engineered to a higher degree than your standard dump trailer, this heavy-duty performer can take your business to the next level.

A Closer Look

Wireless Remote Options

BWise wireless remotes provide the ability to give you control of your hydraulic system from up to 100 feet away without being tied to a cord. Our wireless remote systems come standard with two key FOBs to access and control the system. Without a cord, you have more flexibility to see what's going on all around your trailer, allowing you to monitor what's happening with your load.
