DT12 – 12k Tandem Axle Low Profile Dump

Trailers > Dump Trailers > Channel Frame Low Profile Dump Trailer > DT12 – 12k Tandem Axle Low Profile Dump

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

12,000 lbs.
12'
72", 81.5"
4.6 - 5.0 cu yds
9,220 - 9,380 lbs.
45°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
12'
2620 - 2780 lbs

Deck Width 72", 81.5"

Deck Height 27"

Frame 6" Channel Frame

Crossmember 3" Channel

Dump Sides 20" - 14 GA

Flooring 10 GA One-Piece Steel

Fenders Treadplate Steel

Dump Gate Combo Barn Door/Spreader Gate

Ramps 6' Slide-In

Axles 2 - 6,000 lb. Premium Axles

Suspension 5-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires ST235/80R16 10 ply Radial

Wheel 16" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 8K Side Wind Drop Leg Jack

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Tube Stake Pockets

D-Ring 4 Bolt-On

Battery GR24 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• 24" Side Extension Kit

• 44" Solid High Sides

• 5A 110V Battery Charger

• Adjustable Pintle Ring

• Aluminum Ladder Ramps

• Board Gusset Kit

• Gooseneck

• Hydraulic Surge Brakes

• Spare Tire

• Spare Tire Mount

• Tarp Kit

• Wireless Remote

A Closer Look

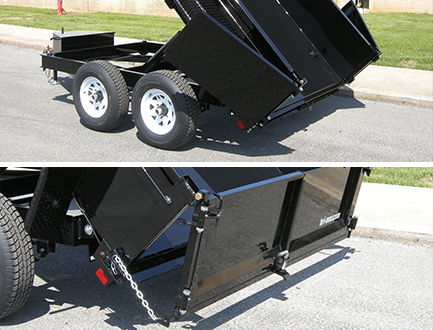

2-Way Combo Gate

Whether using the split barn-door for loading pallets, the spreader gate to disperse gravel and smaller debris, or the 6' ladder ramps to load tractors, skid steers, and similar equipment - the 2-Way Combo Gate and ramp feature give you more versatility and capabilities with your dump trailer.

A Closer Look

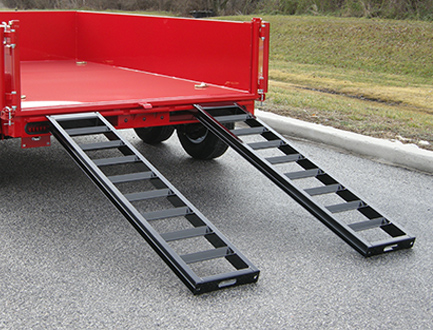

Rear Slide Out Ramps for Dump Trailers

A Closer Look

Tarp Tie Down

Many jurisdictions require loads to be tarped for safety. Our full-length tie-down rail provides a secure point to attach tarp bungees over the length of the trailer. Don't struggle to find a tie-down point, simply tarp and go.

A Closer Look

Tube Stake Pockets

Tube Stake Pockets add strength and durability to your dump trailer bed. They also serve as a mounting point when adding board side extensions for increased cubic capacity.
