DLPX5 – 5k Single Axle Low Profile Dump

Trailers > Dump Trailers > Tube Frame Low Profile Dump Trailer > DLPX5 – 5k Single Axle Low Profile Dump

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

5,000 lbs.
8'
60"
2.2 cu yds
3,670 lbs.
45°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
8'
1,330 lbs

Deck Width 60"

Deck Height 27"

Frame 5" Tube Frame

Crossmember 3" Channel

Dump Sides 20" - 14 GA

Flooring 12 GA One-Piece Steel

Fenders Smooth Steel

Dump Gate One-Piece Tailgate

Axles 1 - 6,000 lb. Premium Axles

Suspension 6-Leaf II

Brakes Electric Self Adjusting Brakes

Tires ST225/75R15 8 ply Radial

Wheel 15" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 8K Side Wind Drop Leg Jack

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

Battery GR24 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• 24" Side Extension Kit

• 5A 110V Battery Charger

• Board Gusset Kit

• Hydraulic Surge Brakes

• Landscape Gate w/ D Rings

• Spare Tire

• Spare Tire Mount

• Tarp Kit

• Wireless Remote

A Closer Look

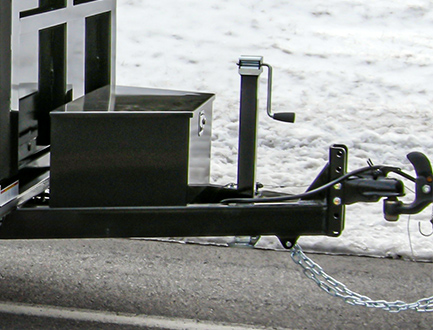

8K Drop Leg Side Wind Jack

The included drop leg side wind jack provides a sturdy and stable jack to support your trailer while prepping to load or hitch. The durable bevel gear design outperforms similar top wind jacks, and the convenient drop leg saves cranking time. With the easy side wind crank, you can quickly adjust the jack height needed for your trailer and tow vehicle.

A Closer Look

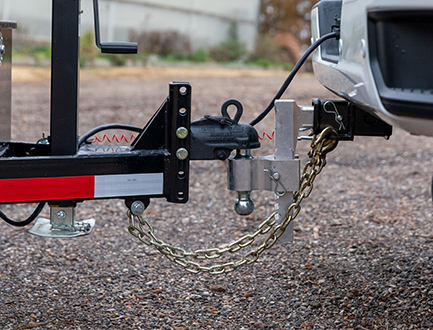

Adjustable Channel Coupler

An adjustable channel mount coupler provides a way to regulate the ride height for a trailer to be hauled by different vehicles. The multiple adjustment points allow you to position the coupler height as needed, providing your trailer sits at the proper ride height to your tow vehicle every time.
