DLPX14 – 14k Tandem Axle Low Profile Dump

Trailers > Dump Trailers > Tube Frame Low Profile Dump Trailer > DLPX14 – 14k Tandem Axle Low Profile Dump

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

14,000 lbs.
14', 16'
81.5"
5.9 - 6.6 cu yds
9,735 - 9,770 lbs.
43°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
14'
4,230 lbs
16'
4,265 lbs

Deck Width 81.5"

Deck Height 26", 30"

Frame 8" Tube Frame

Crossmember 3" Channel

Dump Sides 20" - 12 GA

Flooring 10 GA One-Piece Steel

Fenders Treadplate Steel

Dump Gate Combo Barn Door/Spreader Gate

Ramps 6' Slide-In

Axles 2 - 7,000 lb. 4" Drop Premium Axles

Suspension 5-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires ST235/80R16 10 ply Radial

Wheel 16" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 12K Spring Loaded Drop Leg Jack

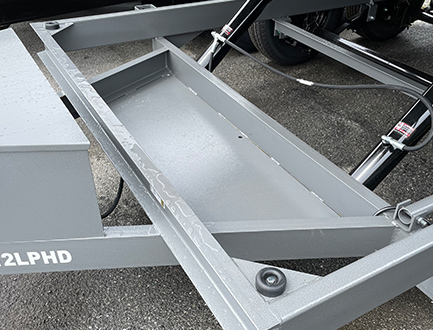

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

D-Ring 4, 6 Bolt-On

Battery GR24 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• 24" Side Extension Kit

• 44" Solid High Sides

• 5A 110V Battery Charger

• Adjustable Pintle Ring

• Aluminum Ladder Ramps

• Aluminum Wheels

• Board Gusset Kit

• G ply Tire Upgrade

• Gooseneck

• Hydraulic Surge Brakes

• Pallet Fork Carrier

• Rear Stabilizer Legs

• Spare Tire

• Spare Tire Mount

• Tarp Kit

• Wireless Remote

A Closer Look

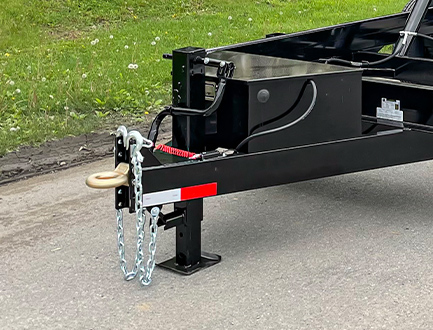

12K Drop Leg Spring Loaded Jack

The included drop leg spring-loaded jack makes it easier and quicker to hook and unhook your trailer by lessening the amount of time required to crank over a traditional jack. An immediate retraction of the jack leg is made easy as it springs back into place for an efficient setup of your trailer as your prepping to load or getting ready to haul.

A Closer Look

2-Way Combo Gate

Whether using the split barn-door for loading pallets, the spreader gate to disperse gravel and smaller debris, or the 6' ladder ramps to load tractors, skid steers, and similar equipment - the 2-Way Combo Gate and ramp feature give you more versatility and capabilities with your dump trailer.
