DLP21 – 21k Triple Axle Low Profile Dump

Trailers > Dump Trailers > Tube Frame Low Profile Dump Trailer > DLP21 – 21k Triple Axle Low Profile Dump

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

21,000 lbs
18'
82"
8.5 cu yds
15,300 lbs.
47°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
18'
5,700 lbs

Deck Width 82"

Deck Height 26"

Frame 8" Tube Frame

Crossmember 3" Channel

Dump Sides 22.5" - 12 GA

Flooring 10 GA Steel

Fenders Treadplate Steel

Dump Gate Combo Barn Door/Spreader/Tailgate

Ramps 6' Slide-In Aluminum

Axles 3 - 7,000 lb. 4" Drop Premium Axles

Suspension 5-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires ST235/80R16 10 ply Radial

Wheel 16" Black Mod Wheels

Coupler 3" Pintle

Jack 10K Hydraulic Hyjacker

Rear Support Jacks Rear Stabilizer Legs

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

D-Ring 6 Side Mount Bolt-On

Battery GR27 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• 24" Side Extension Kit

• 48" Solid High Sides

• Aluminum Wheels

• G ply Tire Upgrade

• Gooseneck

• Pallet Fork Carrier

• Spare Tire

• Tarp Kit

• Wireless Remote

A Closer Look

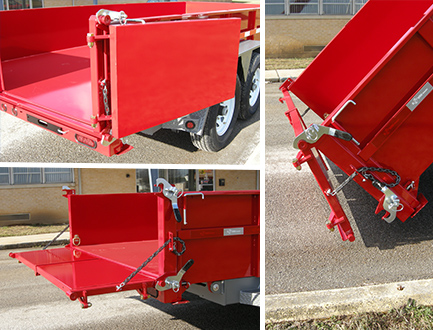

3-Way Combo Gate

Whether using the split barn-door for loading pallets, the spreader gate capability to disperse gravel and smaller debris, the tailgate to haul longer loads or the 6' Ladder ramps to load tractors, skid steers and similar equipment - the 3-Way Combo Gate and ramp feature gives you more versatility and capabilities with your dump trailer.

A Closer Look

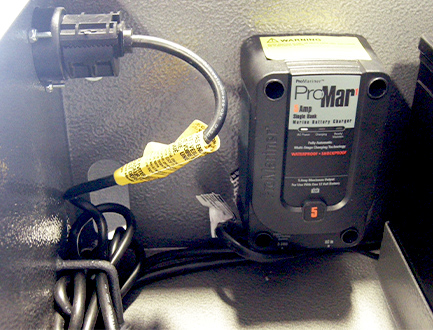

Charge Up with the 110V Charger

Don't get stranded without battery power to operate your trailer's lift! This included 5 Amp, 110V Charger provides you a fast and efficient way to charge your trailer's battery, so you always have the power to get the job done.

A Closer Look

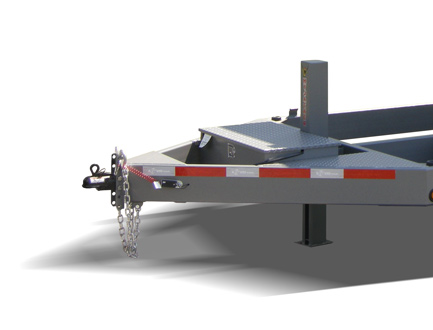

Hydraulic Jacks by BWise

For easy and convenient hook up and unhitch, our internally engineered and manufactured hydraulic jack system gives the added benefit of saving your time and energy to get your trailer prepped for hitching or unhitching to your tow vehicle.

A Closer Look

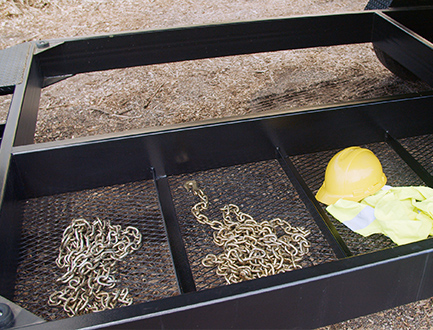

Storage Solutions - Tool Tray

Do you need the storage of a toolbox but don't have the space to add it to your trailer or truck? The Tool Tray in a Frame is a great "hideaway" storage feature on select BWise trailers offering an extra storage solution without taking additional trailer cargo space.
