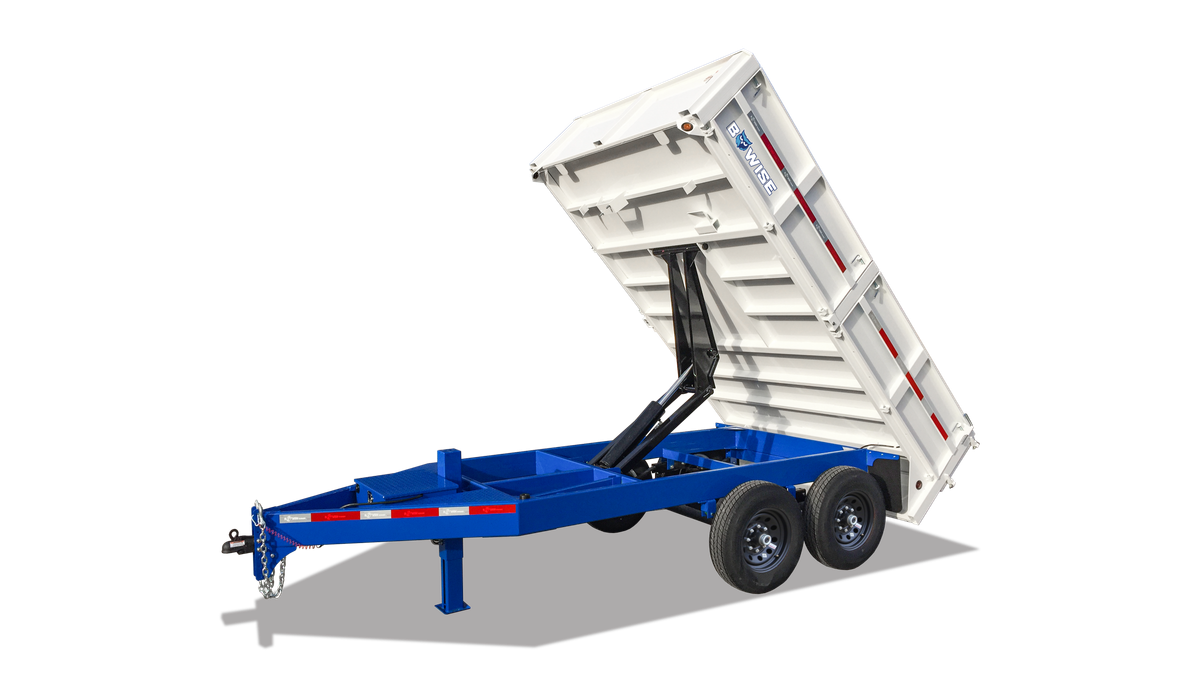

DD15 – 15k Deckover Dump Trailer

Trailers > Dump Trailers > Tube Frame Deckover Dump Trailer > DD15 – 15k Deckover Dump Trailer

GVWR
Length
Width
Cargo Capacity
Payload Capacity
Dump Angle

15,400 lbs.
12', 14', 16'
84"
5.7 - 7.6 cu yds
11,200 - 11,440 lbs.
47°

Find a Dealer Download Brochure

Base Specs
Standard Features
Options

Length
Weight
12'
3,960 lbs
14'
4,100 lbs
16'
4,200 lbs

Deck Width 84"

Deck Height 35"

Frame 8" Tube Frame

Crossmember 3" Channel

Dump Sides 22.5" Fold Down Sides - 12 GA

Flooring 10 GA One-Piece Steel

Dump Gate Split Barn Doors

Axles 2 - 7,000 lb. Premium Axles

Suspension 5-Leaf Slipper

Brakes Electric Self Adjusting Brakes

Tires ST235/80R16 10 ply Radial

Wheel 16" Black Mod Wheels

Coupler 2 5/16" Adjustable Coupler

Jack 10K Hydraulic Hyjacker

Toolbox Lockable Pump Box with Gas Shock

Stake Pockets Full Height Stake Pockets

Battery GR27 Deep Cycle

Wiring Harness All-Weather Wiring Harness (7-way RV)

Charge Wire Charge Wire with Circuit Breaker

Lighting Rubber Mount Lifetime LED Lights

• 48" Solid High Sides

• Adjustable Pintle Ring

• Aluminum Wheels

• Electric/Hydraulic Brakes

• G ply Tire Upgrade

• Gooseneck

• Spare Tire

• Tarp Kit

• Wireless Remote

A Closer Look

Charge Up with the 110V Charger

Don't get stranded without battery power to operate your trailer's lift! This included 5 Amp, 110V Charger provides you a fast and efficient way to charge your trailer's battery, so you always have the power to get the job done.

A Closer Look

Fold-Down Sides

Fold-down sides make loading and unloading palletized material so much easier on the deck over dump trailers, allowing for closer and safer access to the dump bed. On select larger models, these fold-down sides come in a split style, making the sides easier to manage when adjusting sides up or down with shorter segments of the side to move.

A Closer Look

Hydraulic Jacks by BWise

For easy and convenient hook up and unhitch, our internally engineered and manufactured hydraulic jack system gives the added benefit of saving your time and energy to get your trailer prepped for hitching or unhitching to your tow vehicle.

A Closer Look

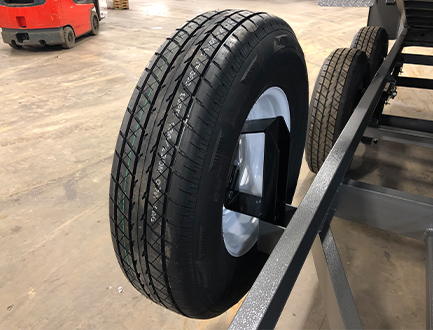

Spare Tire Mount (Dump)

The universal spare tire mount provides a secure and convenient location on your trailer to hold a spare tire just in case it's needed. With a secure bolt-on attachment, you can rest assured your spare tire will be secure and accessible for when you need it the most.
